The GRACE Calculator estimates mortality risk in acute coronary syndrome and helps guide treatment decisions based on patient risk.

Explore more heart calculator:

What Is the GRACE Score?

The GRACE Score is derived from the GRACE registry, a large, multinational observational study. It estimates the risk of in-hospital and 6-month post-discharge mortality in ACS patients. By incorporating eight clinical variables, the score provides a numeric value which stratifies patients into low, intermediate, or high risk categories.

Parameters Used in the GRACE Score Calculator

The GRACE Calculator includes the following variables:

1. Age
2. Heart rate
3. Systolic blood pressure
4. Serum creatinine
5. Killip class
6. Cardiac arrest at admission
7. ST-segment deviation
8. Elevated cardiac enzymes (troponins or CK-MB)

Killip class

Class	Signs / Symptoms
I	No signs or symptoms of heart failure
II	Lung rales/crackles, elevated jugular venous pressure (JVP)
III	Acute pulmonary edema
IV	Cardiogenic shock — systolic BP < 90 mmHg and signs of vasoconstriction (oliguria, cyanosis, etc.)

Each factor is given a weighted value, and the cumulative score determines the patient’s risk category.

1.How to Calculate the GRACE Risk Score for ACS

1. Age

Age Range	Points Formula
< 35	0
35–45	(Age – 35) × 1.8
45–55	18 + (Age – 45) × 1.8
55–65	36 + (Age – 55) × 1.8
65–75	54 + (Age – 65) × 1.9
75–85	73 + (Age – 75) × 1.8
85–90	91 + (Age – 85) × 1.8
≥ 90	100

2. Heart Rate (beats/min)

Heart Rate	Points Formula
< 50	0
50–60	(HR – 50) × 0.3
60–70	3 + (HR – 60) × 0.3
70–80	6 + (HR – 70) × 0.3
80–90	9 + (HR – 80) × 0.3
90–100	12 + (HR – 90) × 0.3
100–110	15 + (HR – 100) × 0.3
110–150	18 + (HR – 110) × (12 ÷ 40)
150–200	30 + (HR – 150) × (16 ÷ 50)
≥ 200	46

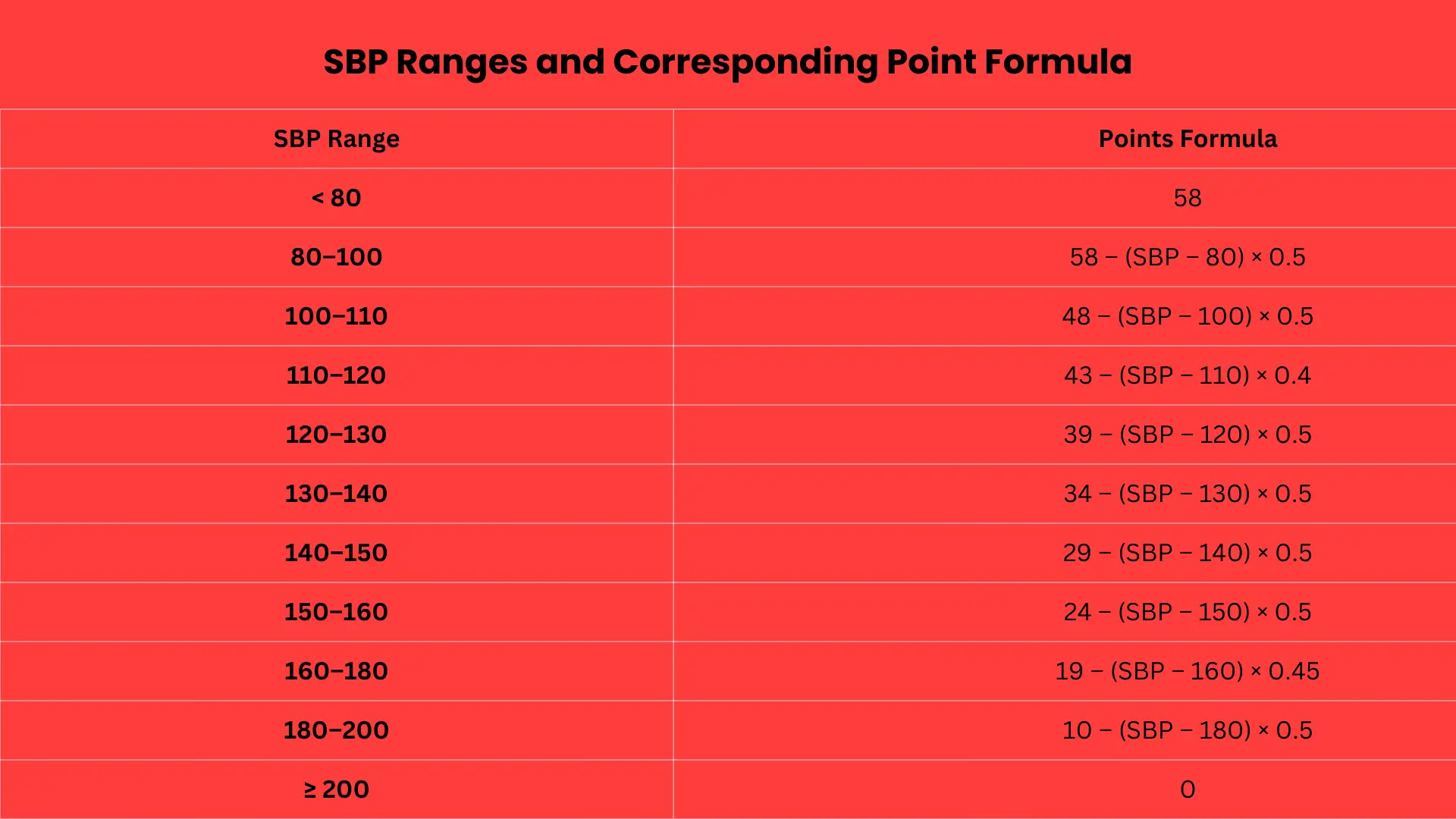

3. Systolic Blood Pressure (mmHg)

SBP Range	Points Formula
< 80	58
80–100	58 – (SBP – 80) × 0.5
100–110	48 – (SBP – 100) × 0.5
110–120	43 – (SBP – 110) × 0.4
120–130	39 – (SBP – 120) × 0.5
130–140	34 – (SBP – 130) × 0.5
140–150	29 – (SBP – 140) × 0.5
150–160	24 – (SBP – 150) × 0.5
160–180	19 – (SBP – 160) × 0.45
180–200	10 – (SBP – 180) × 0.5
≥ 200	0

4. Serum Creatinine (mg/dL)

Creatinine Range	Points Formula
< 0.2	Creat ÷ 0.2
0.2–0.4	1 + (Creat – 0.2) × 10
0.4–0.6	3 + (Creat – 0.4) × 5
0.6–0.8	4 + (Creat – 0.6) × 10
0.8–1.0	6 + (Creat – 0.8) × 5
1.0–2.0	7 + (Creat – 1.0) × 7
2.0–3.0	14 + (Creat – 2.0) × 7
3.0–4.0	21 + (Creat – 3.0) × 7
≥ 4.0	28

5. Killip Class

Class	Points
I	0
II	20
III	39
IV	59

6. Other Variables

Variable	Points if Present
ST-segment deviation	28
Elevated cardiac enzymes	14
Cardiac arrest at admission	39

2. How to Use the GRACE Calculator

The calculator can be used during the initial evaluation of a patient presenting with chest pain suggestive of ACS. Input the patient’s parameters into the tool, and the GRACE Score will be generated automatically. Based on the score:

• Low risk: Consider early discharge and medical management.
• Intermediate risk: Monitor and consider early invasive strategy if necessary.
• High risk: Prioritize for invasive evaluation and aggressive treatment.

3. Clinical Significance of the GRACE Score Calculator

• Evidence-Based: The GRACE Score is supported by large-scale data and numerous validation studies.
• Guideline-Recommended: It is endorsed by ESC (European Society of Cardiology) and AHA (American Heart Association) for use in clinical risk stratification.
• Improves Outcomes: By identifying high-risk patients early, it enables timely and appropriate interventions.

4. GRACE Calculator vs GRACE Risk Score Calculator

There is no difference between the GRACE Calculator and the GRACE Risk Score Calculator. Both terms refer to the same clinical tool used for estimating mortality risk in ACS patients. “GRACE Calculadora” is simply the Spanish translation.

5. Limitations of the GRACE Score

While powerful, the GRACE Score should not replace clinical judgment. It is:

• Not suitable for patients with atypical presentations
• Not intended for stable coronary artery disease
• Dependent on accurate clinical input

6. Conclusion

The GRACE Calculator remains a cornerstone in the evaluation of patients with acute coronary syndrome. Its predictive accuracy, evidence-based foundation, and global acceptance make it an essential tool for any cardiologist, emergency physician, or internal medicine provider. By integrating the GRACE Score into clinical practice, healthcare professionals can optimize outcomes through timely, risk-based decisions.

7. FAQs

How to calculate GRACE score?

The GRACE score is calculated using 8 clinical variables: age, heart rate, systolic blood pressure, serum creatinine, Killip class, cardiac arrest at admission, ST-segment deviation, and elevated cardiac enzymes. These inputs are added using a point-based system in the GRACE Calculator to estimate mortality risk in ACS.

How to calculate grace score?

The GRACE score is worked out by assigning points to 8 key factors in acute coronary syndrome: age, heart rate, systolic blood pressure, creatinine level, Killip class, presence of cardiac arrest at admission, ST-segment changes, and elevated cardiac enzymes. Each factor contributes a set number of points. When the points are added together, the total score estimates the patient’s risk of death in hospital or within 6 months.
