Aortic Valve Area Calculator: Accurate Assessment of Aortic Stenosis

Aortic stenosis is a progressive cardiovascular condition characterized by narrowing of the aortic valve, which restricts blood flow from the left ventricle to the aorta. Early detection and precise evaluation of aortic valve function are crucial for preventing complications such as heart failure, syncope, or sudden cardiac death. An Aortic Valve Area Calculator provides clinicians and patients with an effective way to quantify the severity of aortic stenosis and guide appropriate management.

Understanding Aortic Valve Area (AVA)

The aortic valve area (AVA) measures the opening of the aortic valve through which blood flows. A normal AVA ranges between 2.5 to 3.5 cm². When the valve becomes stenotic, the area decreases, leading to increased pressure gradients and left ventricular strain. AVA is therefore a key indicator of the severity of aortic stenosis.

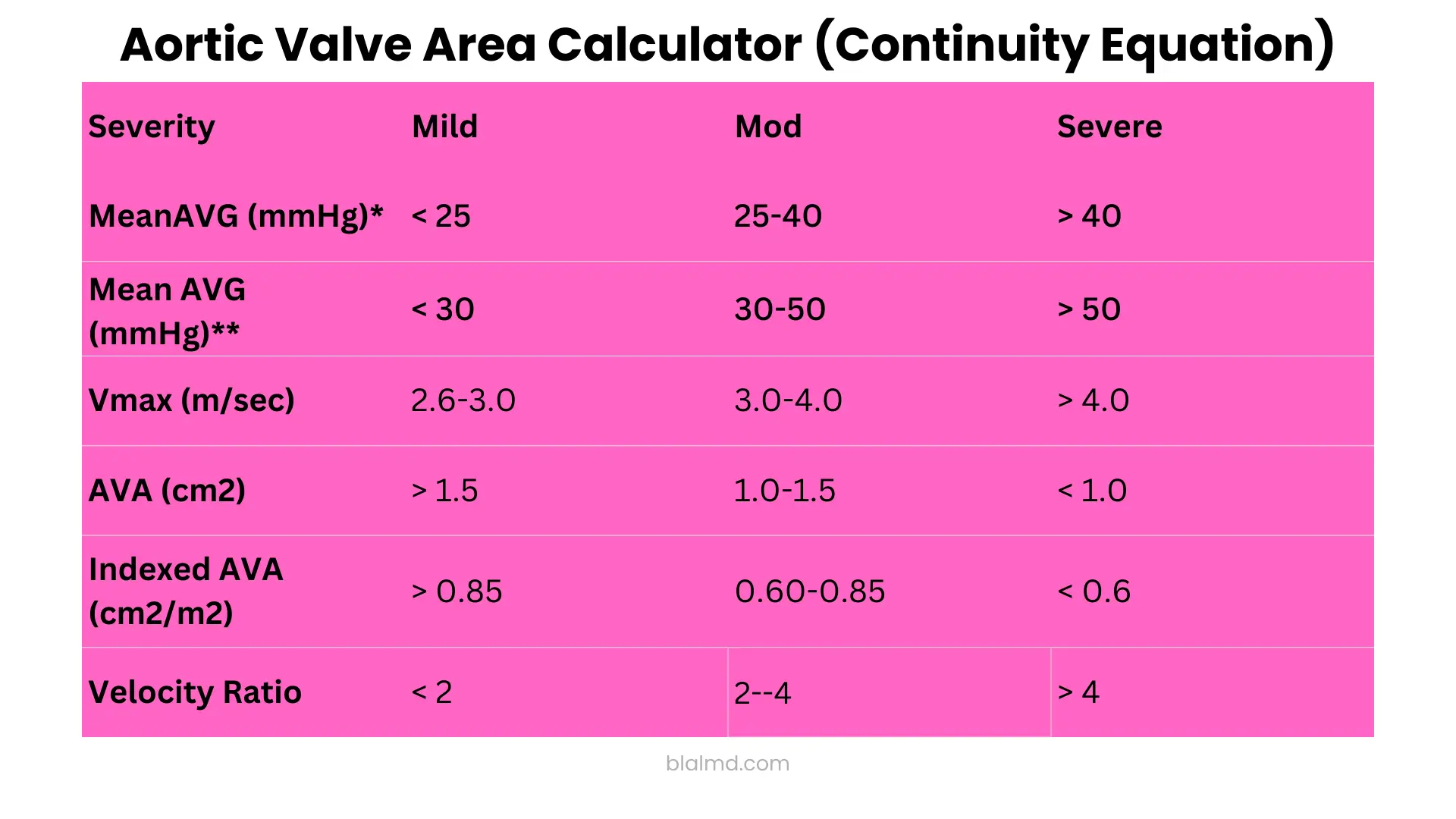

• Normal: >2.0 cm²
• Mild Stenosis: 1.5–2.0 cm²
• Moderate Stenosis: 1.0–1.5 cm²
• Severe Stenosis: <1.0 cm²

The Aortic Valve Area Calculator simplifies this assessment by applying validated equations to input data such as flow velocity and stroke volume, providing a rapid, reliable measurement.

How the Aortic Valve Area Is Calculated

There are several methods for calculating AVA, but the most widely used in clinical practice is the continuity equation. The equation is based on the principle of conservation of mass, which states that the flow through the left ventricular outflow tract (LVOT) equals the flow through the aortic valve.

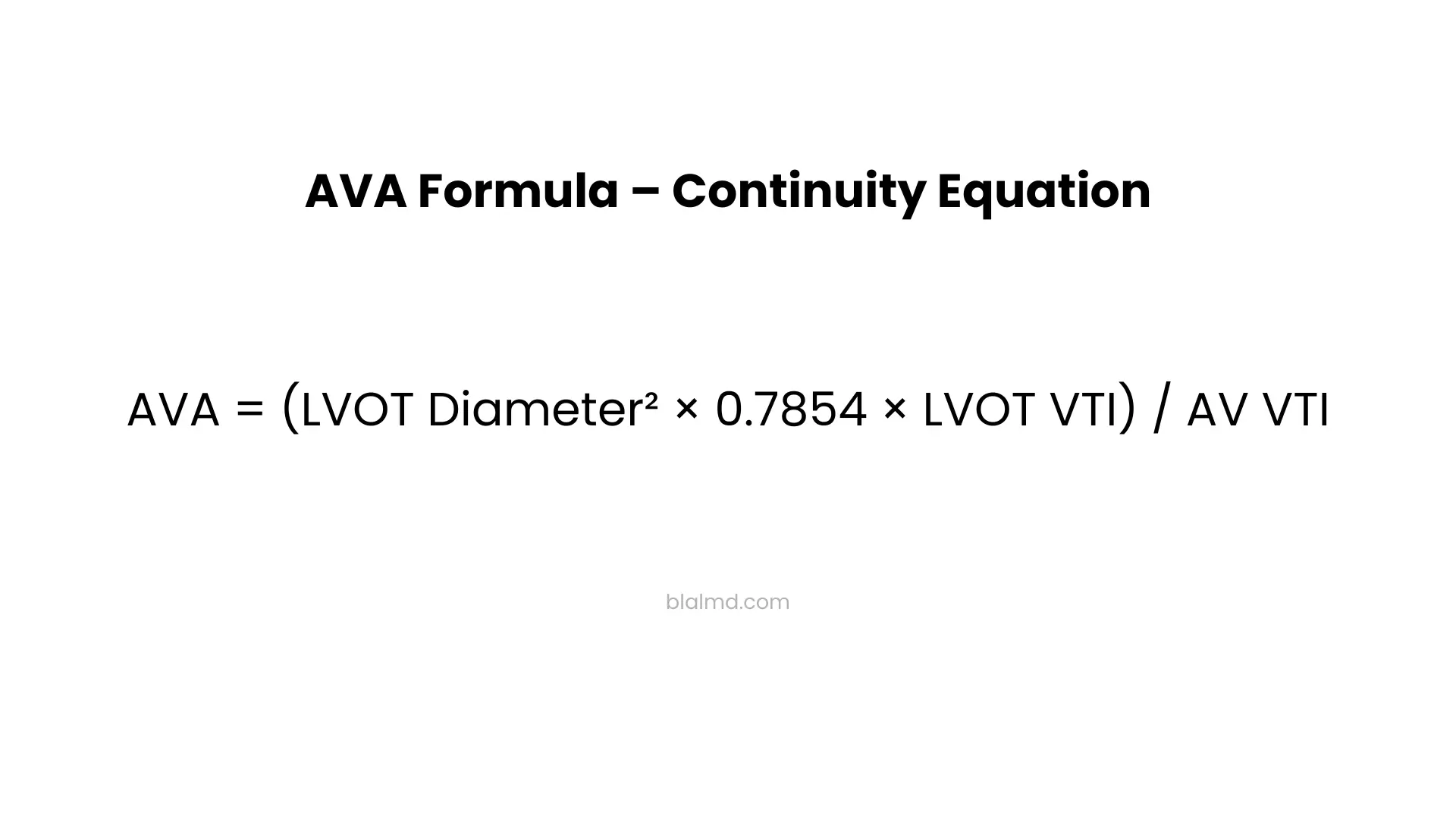

AVA=Aortic Valve VTILVOT Area×LVOT Velocity-Time Integral (VTI)​

Where:

• LVOT Area=0.785×(LVOT Diameter)square
• LVOT VTI = integral of the velocity of blood flow in the LVOT
• Aortic Valve VTI = The area under the curve of blood flow velocity across the aortic valve over time.

This calculation ensures an accurate measurement of valve area, accounting for the patient’s hemodynamics and individual anatomy.

Why Use an Aortic Valve Area Calculator?

Manual calculations of AVA can be time-consuming and prone to errors. An online Aortic Valve Area Calculator offers several advantages:

1. Efficiency: Quickly computes the aortic valve area using standard clinical measurements.
2. Accuracy: Minimizes calculation errors, especially in complex cases.
3. Guidance: Helps clinicians decide whether patients require medical management, monitoring, or surgical intervention.
4. Patient Education: Enables patients to understand the severity of their aortic stenosis in clear numerical terms.

Clinical Significance of AVA

The AVA is essential for classifying aortic stenosis severity and planning treatment:

• Mild Stenosis (AVA 1.5–2.0 cm²): Patients may remain asymptomatic but require regular monitoring.
• Moderate Stenosis (AVA 1.0–1.5 cm²): Symptoms such as fatigue or dyspnea may appear; echocardiography should be performed annually.
• Severe Stenosis (AVA <1.0 cm²): Strong indication for aortic valve replacement or transcatheter aortic valve implantation (TAVI) if symptomatic.

Early identification and intervention significantly improve outcomes and reduce the risk of complications like left ventricular hypertrophy or heart failure.

Step-by-Step Use of the Aortic Valve Area Calculator

Using the Aortic Valve Area Calculator is straightforward:

1. Input LVOT Diameter: Measure the diameter of the left ventricular outflow tract using echocardiography.
2. Enter LVOT VTI: Input the velocity-time integral from the Doppler assessment in the LVOT.
3. Enter Aortic Valve VTI: Input the velocity-time integral through the aortic valve.
4. Calculate: Click the “Calculate” button to determine the aortic valve area.
5. Interpret Results: Compare the calculated AVA with standard severity thresholds to determine the grade of aortic stenosis.

This process allows rapid and accurate assessment without manual calculation errors.

Understanding Related Terms

1. Aortic Valve Area Index (AVAi): Adjusts AVA for body surface area (BSA) to improve risk stratification, particularly in small or large individuals.

AVAi=AVABSA\text{AVAi} = \frac{\text{AVA}}{\text{BSA}}AVAi=BSAAVA​

2. Calculating Aortic Valve Area: Refers to the process of using Doppler echocardiography and mathematical equations to measure AVA.
3. AVA Calculator: A digital tool that simplifies these calculations for clinicians and patients.
4. Aortic Valve Calculation: The general term encompasses all methods, including continuity equation and planimetry, used to assess the aortic valve function.

Advantages of Using a Digital AVA Tool

• Time-saving: Quickly calculates AVA without manual formula entry.
• Precision: Reduces human error in calculations.
• Documentation: Easily exportable results for medical records or follow-up.
• Educational Value: Patients can visualize the impact of stenosis on their heart function.

Important Considerations

While the Aortic Valve Area Calculator is highly useful, some factors should be kept in mind:

• Accuracy depends on precise echocardiographic measurements.
• Obstruction due to subvalvular or supravalvular stenosis may influence results.
• Low-flow, low-gradient aortic stenosis requires careful interpretation.
• Always consult a cardiologist to confirm findings and discuss management options.

Tips for Patients and Clinicians

• Patients: Ensure your echocardiography is performed by a qualified technician. Avoid changing medications before the test without consulting your doctor.
• Clinicians: Cross-check LVOT measurements, consider body size adjustments using AVA index, and monitor trends over time for progressive stenosis.

Key Takeaways

• The Aortic Valve Area Calculator provides an accurate, efficient method for determining AVA.
• AVA is a critical measure for assessing aortic stenosis severity.
• Digital calculators improve workflow, reduce errors, and aid in clinical decision-making.
• Early detection of aortic stenosis enables timely interventions and better patient outcomes.
• AVA index helps individualize risk assessment based on patient size.

Conclusion:

The Aortic Valve Area Calculator is an indispensable tool for both clinicians and patients, allowing accurate assessment of aortic stenosis severity. By integrating echocardiographic data into a simple digital interface, this calculator enhances clinical decision-making, improves patient understanding, and ultimately contributes to better cardiovascular outcomes.
